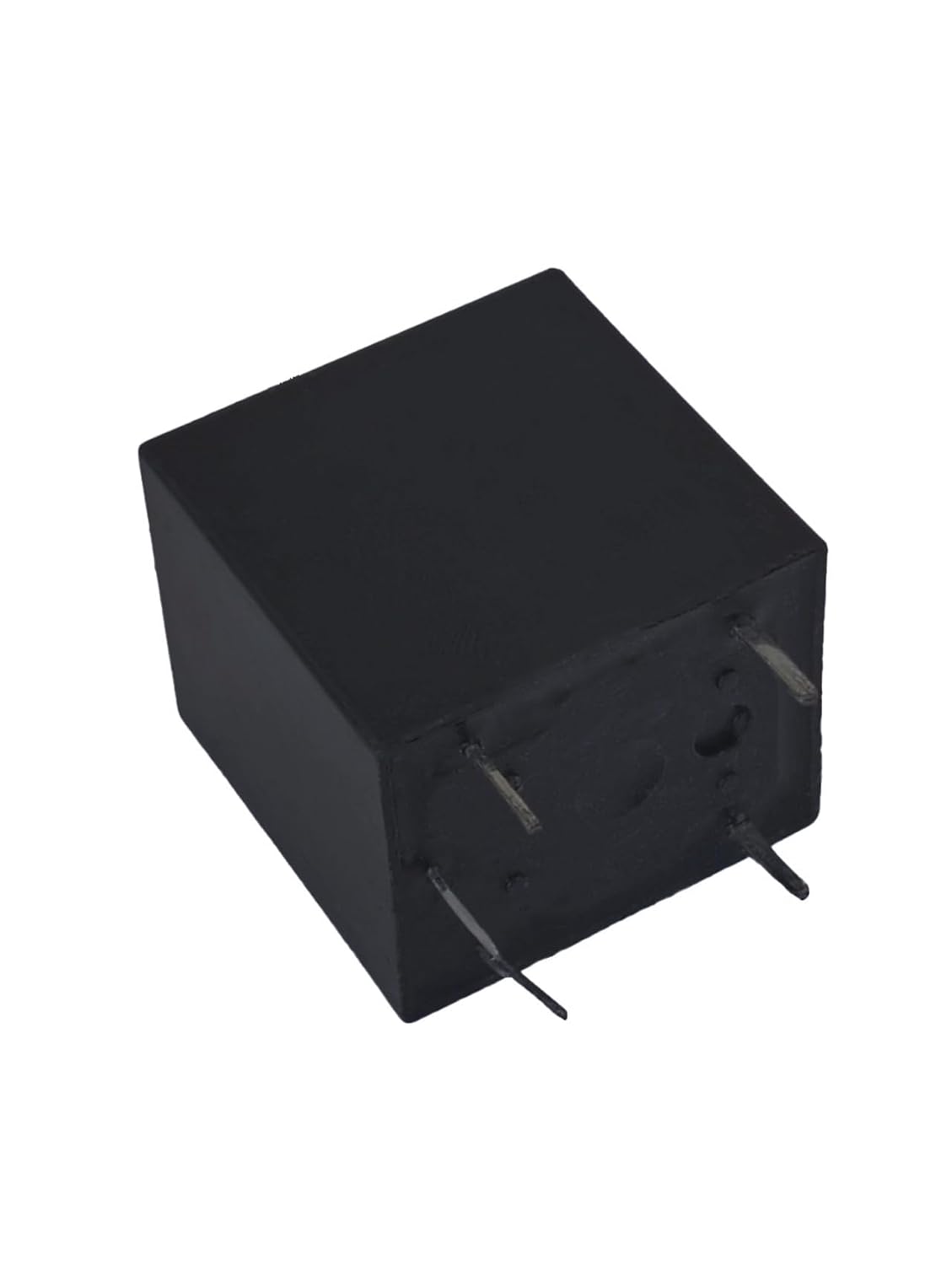

T7CS5D-24 24VDC Power Relay Same as JZC-22FFC15D24VDC

Specification: Connector Type: Quick Connect Mounting Type: Plug In Mount Easy to install, plug and plays Contact type: SPDT Coil Voltage: 24VDC Contact Form: SPDT (1 Form C) Contact Rating (Current): 12 A Switching Voltage: 240VAC, 24VDC - Max Load - Max Switching: 2880VA, 288W Coil Current: 15 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Coil Insulation: Class F Application: Automotive Applications: Automotive Circuit Control: The T7CS5D-24 relay is widely used in vehicle systems to switch high-current circuits such as headlights, fans, horns, air conditioning systems, and power windows. Electric Vehicle (EV) Systems: In electric vehicles, the relay can be used for battery management and power distribution, switching between different power sources like solar, grid, or battery power. Industrial Control: Motor and Pump Control: The T7CS5D-24 relay is commonly used in motor control applications, especially for switching DC motors, AC motors, or pumps in manufacturing, agriculture, and industrial settings. Industrial Automation: It is suitable for use in industrial automation systems where high-power loads need to be controlled by low-voltage control circuits (e.g., through PLC systems). Home Appliances: Control of Household Devices: The relay is used in home appliances such as washing machines, dishwashers, microwave ovens, and refrigerators, controlling components like motors, heating elements, and compressors. Water Heaters: It is ideal for switching heating elements in electric water heaters or toaster ovens. Power Distribution: Battery Management: The T7CS5D-24 relay can be used in battery-powered systems, such as solar power systems, to manage the charging and discharging of batteries, and to switch between solar panels and battery storage. UPS (Uninterruptible Power Supply): In UPS systems, this relay can be used to switch between mains power and backup battery power during a power outage. Consumer Electronics: Switching DC Circuits: The T7CS5D-24 relay can be used in power supplies, chargers, or DC circuits to switch high-power components on and off. Audio and Video Equipment: The relay can be used in audio systems, projectors, lighting systems, and other AV equipment where high-current switching is necessary. Security Systems: Alarm and Control Systems: The relay can be used in security systems to activate sirens, cameras, or locking mechanisms based on input from sensors or control panels. Remote Control Systems: The relay can switch power in remote control systems for turning on lighting, cameras, or heating based on the user's control input. Usage Scenarios: Switching High-Current Loads: The relay is ideal for applications where low-power control signals (e.g., from a microcontroller or PLC system) are used to switch high-power loads like motors, heating elements, or lighting. Automated Motor Control: In industrial or automotive systems, the relay can control DC motors, AC motors, or fans based on inputs from an automated control system. Power Supply Switching: The relay can be used in battery-powered devices to switch between different power sources (such as from solar panels to batteries or from mains power to battery backup). Appliance and HVAC Control: In appliances or HVAC systems, the relay is used to control compressors, heating elements, or fan motors that require high current switching. Package Includes: 1 x 24VDC 12A Relays (Part Number: T7CS5D-24)

• Power Relay T7CS5D-24 24VDC: The T7CS5D-24 24VDC power relay is designed for various applications and offers reliable performance. It is a 5-pin relay capable of handling a maximum current of 12A at 24VDC.
• Normally Open Contact: The relay features a normally open (NO) contact configuration, providing a seamless switch for controlling electrical circuits. This configuration ensures efficient and accurate power control.
• Versatile contact type: It features a Single Pole Double Throw (SPDT) contact type, providing flexibility in power control and switching applications.
• 24VDC, 12A Rating: This power relay operates at a voltage of 24VDC and has a maximum current rating of 12A. Compatible with TE Connectivity/ Potter & Brumfield Multi Purpose Relay.
• 5-Pin Configuration: The T7CS5D-24 24VDC power relay features a 5-pin configuration, allowing for secure and convenient electrical connections. The pins are labeled for easy installation and ensure reliable signal transmission.
